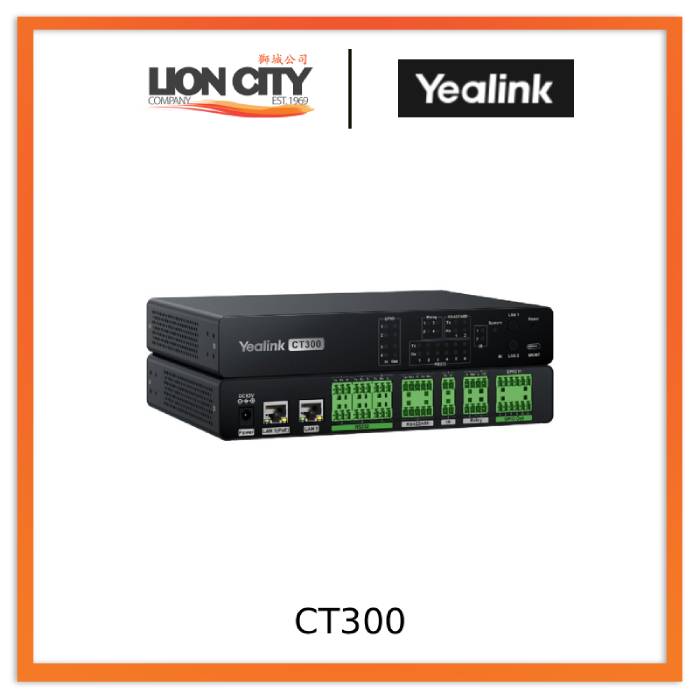

Yealink CT300 Room Device Navigator "Contact for Price"

Yealink CT300 Room Device Navigator "Contact for Price"
Yealink CT300 Room Device Navigator "Contact for Price"

Disclaimer: We strive to present the product information as accurately as possible by taking information directly from the manufacturer's / agent's website. Information on this page is subjected to change without prior notice. Information on this page may not be accurate if there is a change of specification. Consumers are highly recommended to check the manufacturer's site for the latest specs and product information. Pictures are only for illustration. If in doubt, call our customer service hotline to check prior to purchasing. All Materials and images remain the property and copyright of their respective owners.

*All items available for online purchase are not guaranteed to be in stock at the time of order processing. In the event that we are unable to fulfill your order, we will contact you with an alternative, or given a full refund.

Yealink CT300 Room Device Navigator "Contact for Price"

$0.00
Maximum quantity available reached.
Best Price Gurantee

Note: To avoid disappointment, please verify with us for stock availability before purchasing.

Electronic appliances Singapore

Product Description

Contact for Price

Technical Specifications:

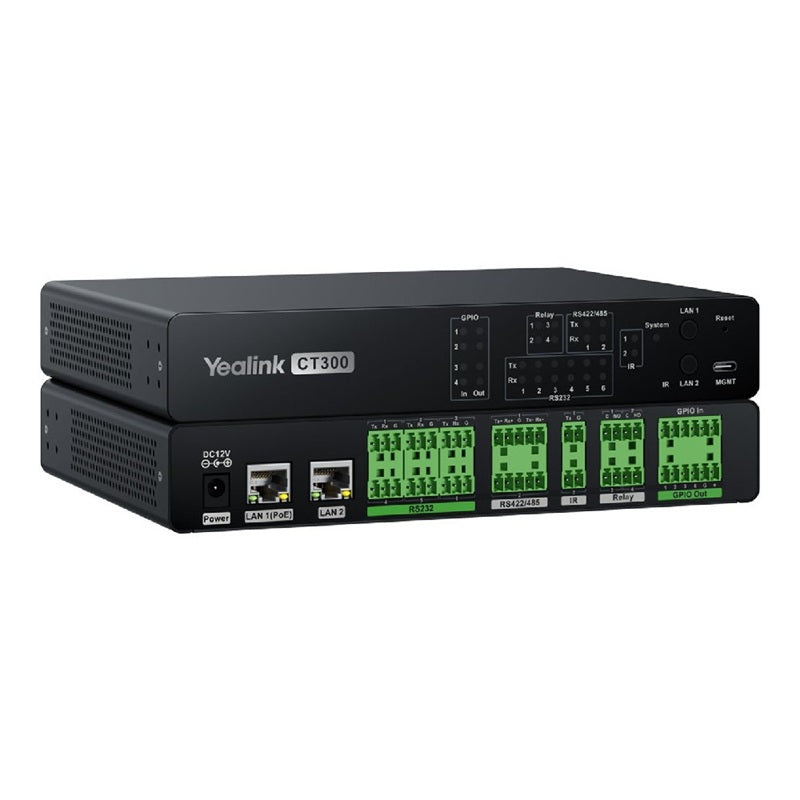

Hardware Interface :

  • Hardware Overview:
  • 1 × PoE port
  • 1 × RJ45 port
  • 6 × RS232 port
  • 2 × RS422/485 port
  • 2 × IR out port
  • 4 × Relay port
  • 4 × GPIO in/out
  • 1 × IR Learning port
  • 1 × MGMT port
  • 1× 12V/2A power supply port
  • Analog Inputs: 12bit A/D, 0 to 24VDC
  • Digital Outputs: 3.3V, 3.3mA
  • Pin Configurations: Pin1,2,3,4=GPIO In/Out, Pin5=Gnd, Pin6=12VDC

IR Learning:

  • Carrier Frequency: Below 38kHz
  • Capture Distance: Below 4m from the front panel

Power Supply:

  • Power Consumption:
  • Average: 2.5W
  • Peak: 3.3W
  • Standby: 1.7W

Installation:

  • Installation Method:
  • Rack installation
  • Flat installation
  • Environmental Factors:
  • Operating humidity: 1095%
  • Operating temperature: -10+45°C
  • Storage temperature: -30~70°C

Dimensions and Weight (W × D × H):

  • Giftbox size: 259 × 193 × 124 mm
  • Carton size: 635 × 265 × 209 mm
  • Dimensions: 216 × 160 × 36.7 mm
  • G.W/CTN: 9.133kg
  • N.W/CTN: 8.485kg
  • Weight: 1.07kg

What's Included:

  • 1 × CT300
  • 1 × 3m Cat5 cable
  • 1 × 1.0m USB 3.0 Type-C to Type-A Cable (for management port)
  • 1 × Power adapter (12V / 2A)
  • 2 × Infrared Emitter (for IR output control)
  • Male phoenix connectors for control connection
  • 1 × Mounting Kit (for wall, flat surface, or rack installation).
  • Includes mounting ears, rack connection piece, and screws
  • 1 × Quick start guide
Sku: CT300
Vendor: Yealink
