Product Description

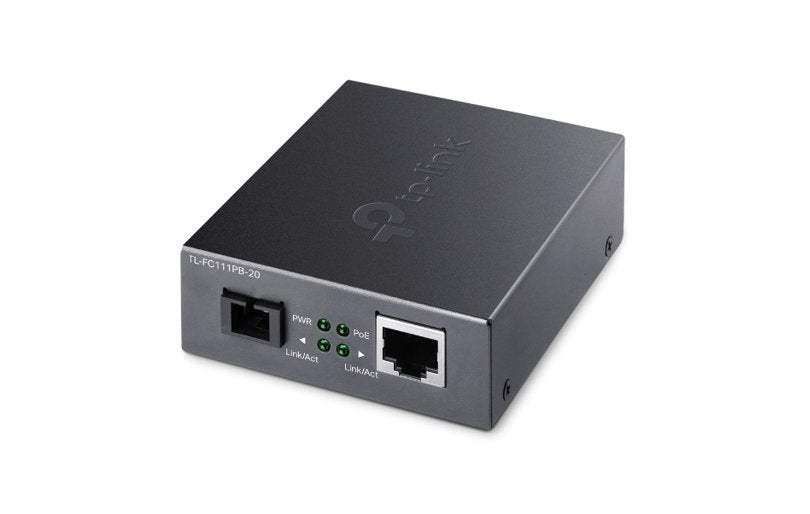

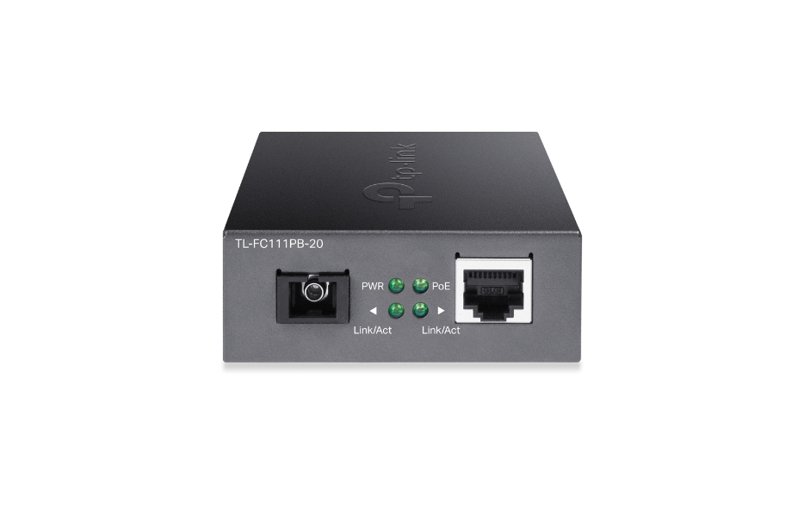

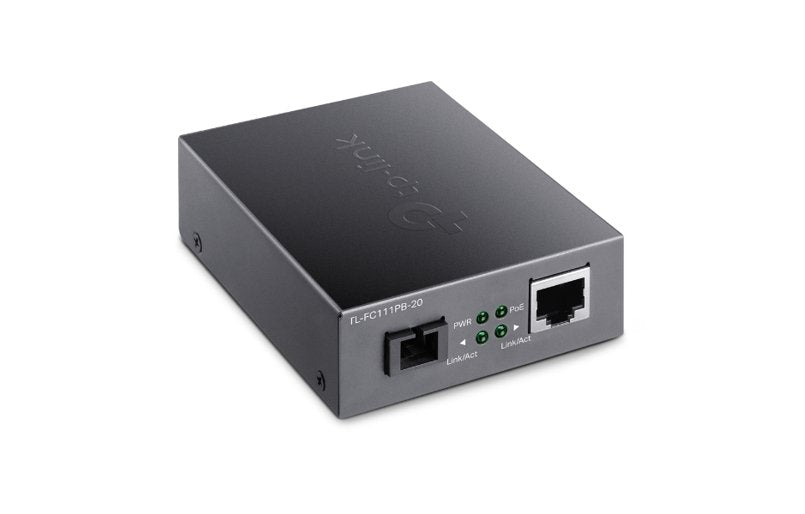

The TP-Link TL-FC111PB-20 is a single-mode SC WDM bi-directional fiber converter that enables data transmission over a single fiber strand, effectively doubling fiber utilization. It features one 100Mbps SC port and one 10/100Mbps PoE RJ45 port with Auto MDI/MDIX, supporting IEEE 802.3af PoE with a 15.4W budget for powering devices such as IP cameras or access points.

This converter operates at wavelengths of Tx:1310 nm and Rx:1550 nm, with a maximum transmission distance of up to 20 kilometers (12.4 miles). It is compliant with CE and FCC standards, operates within a temperature range of 0°C to 50°C, and is powered by a 5V DC, 1A supply. The compact dimensions of 97 x 69 x 27 mm make it suitable for space-constrained installations.

Backed by a 5-year local warranty, the TL-FC111PB-20 is an ideal solution for extending network reach in enterprise, campus, or industrial environments where long-distance, reliable fiber connectivity is required.

Ethernet Standard 10/100Mbps
Fiber Interface Single-mode SC
WDM Technology Bi-directional transmission over a single fiber strand
Max Distance Up to 20 km (12.4 miles)
Ports 1× 100Mbps SC Port, 1× 10/100M PoE RJ45 Port (Auto MDI/MDIX)
PoE Standard IEEE 802.3af, 15.4W PoE Budget
Wavelength Tx: 1310 nm, Rx: 1550 nm
Power Supply 5V DC, 1A
Dimensions 97 x 69 x 27 mm
Operating Temperature 0°C to 50°C
Compliance CE, FCC
Weight 0.5 kg
Sku: TL-FC111PB-20
Vendor: TP-Link
