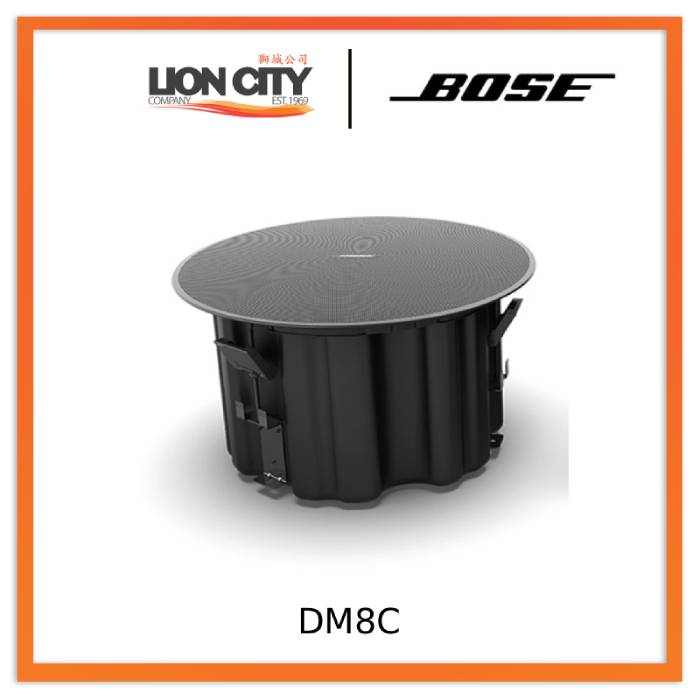

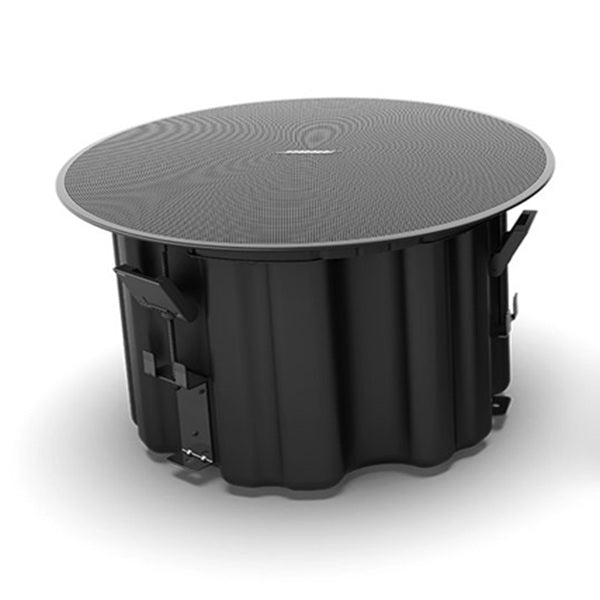

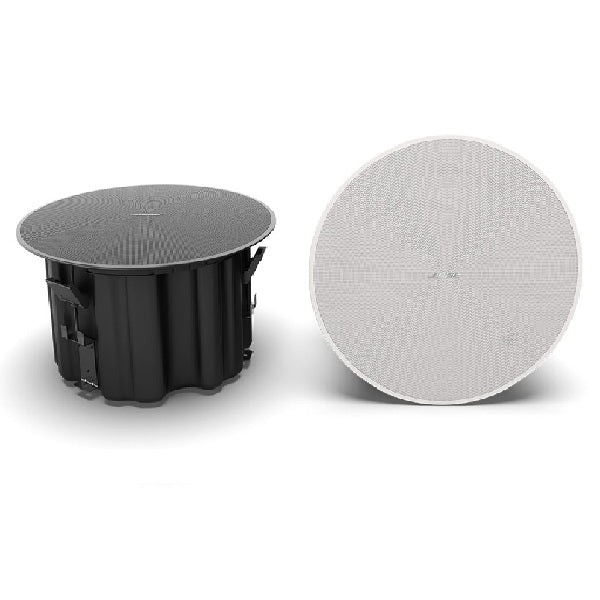

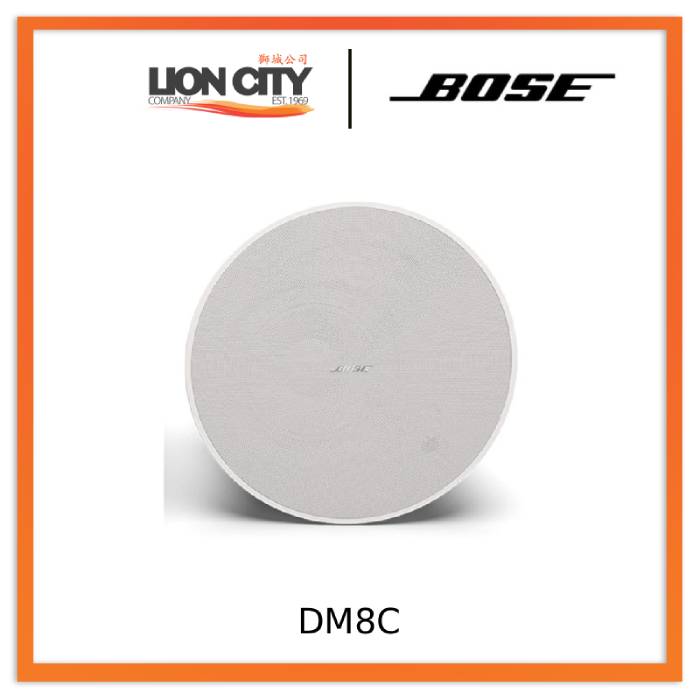

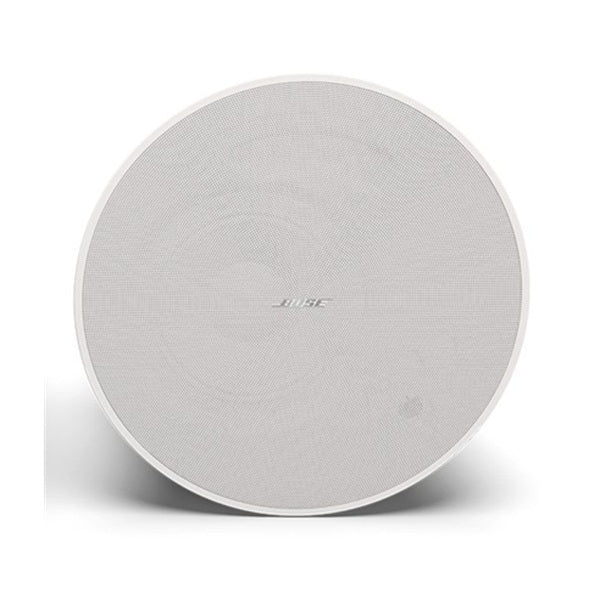

Bose DesignMax DM8C Loudspeaker "Contact for Price"

Bose DesignMax DM8C Loudspeaker "Contact for Price"
Bose DesignMax DM8C Loudspeaker "Contact for Price"
Bose DesignMax DM8C Loudspeaker "Contact for Price"
Bose DesignMax DM8C Loudspeaker "Contact for Price"
Bose DesignMax DM8C Loudspeaker "Contact for Price"

Disclaimer: We strive to present the product information as accurately as possible by taking information directly from the manufacturer's / agent's website. Information on this page is subjected to change without prior notice. Information on this page may not be accurate if there is a change of specification. Consumers are highly recommended to check the manufacturer's site for the latest specs and product information. Pictures are only for illustration. If in doubt, call our customer service hotline to check prior to purchasing. All Materials and images remain the property and copyright of their respective owners.

*All items available for online purchase are not guaranteed to be in stock at the time of order processing. In the event that we are unable to fulfill your order, we will contact you with an alternative, or given a full refund.

Bose DesignMax DM8C Loudspeaker "Contact for Price"

$0.00
Maximum quantity available reached.
Best Price Gurantee

Note: To avoid disappointment, please verify with us for stock availability before purchasing.

Electronic appliances Singapore

Product Description

Contact for Price

Technical Specification:

COMPLIANCE:

  • Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL:

  • Colors Black (RAL 9005), white (RAL 9003), paintable
  • Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
  • Environmental Indoor only
  • Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Ceiling Cutout 13.8 in (349 mm)
  • Logo Rotatable, removable
  • Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
  • Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
  • Net Weight 21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge
  • Shipping Weight 28.0 lb (12.7 kg), single

PERFORMANCE:

  • Frequency Range (-10 dB) 52 Hz – 20,000 Hz
  • Coverage, Horizontal 135° conical
  • Calculated Maximum SPL @ 1 m 113 dB
  • Nominal Impedance 8 Ω (transformer bypass)
  • Power Handling, long-term continuous 150 W
  • Power Handling, Peak 600 W
  • Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m) 91 dB
  • Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass
  • Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
  • Coverage, Vertical 135° conical

TRANSDUCERS:

  • Crossover 1.5 kHz, passive 2-way crossover
  • Driver Protection Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
  • High-Frequency 1 × 1 in (25 mm) compression driver, coaxial center-firing
  • Low-Frequency 1 × 8 in (203 mm) woofer
Sku: DM8C-1
Vendor: Bose
